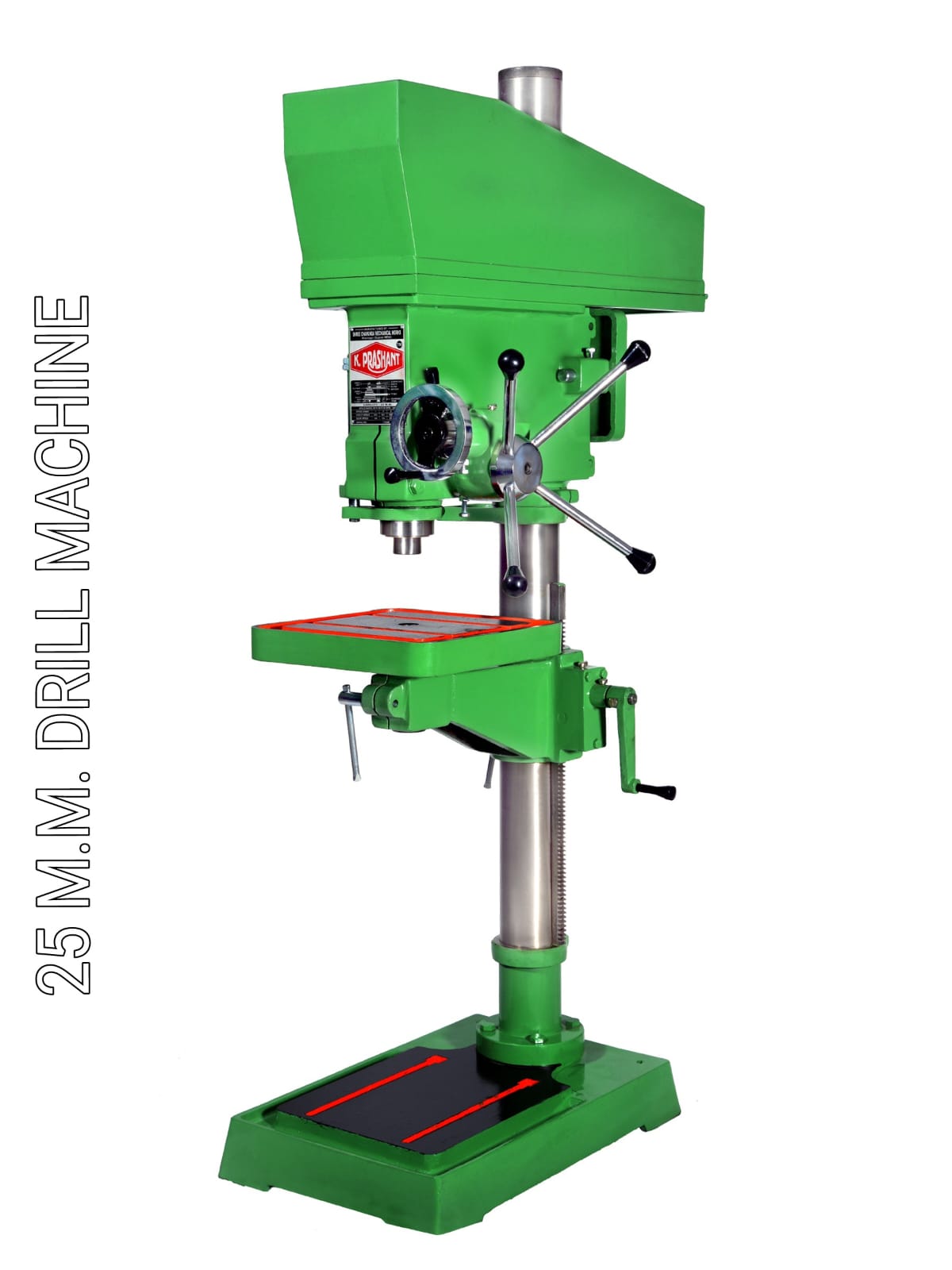

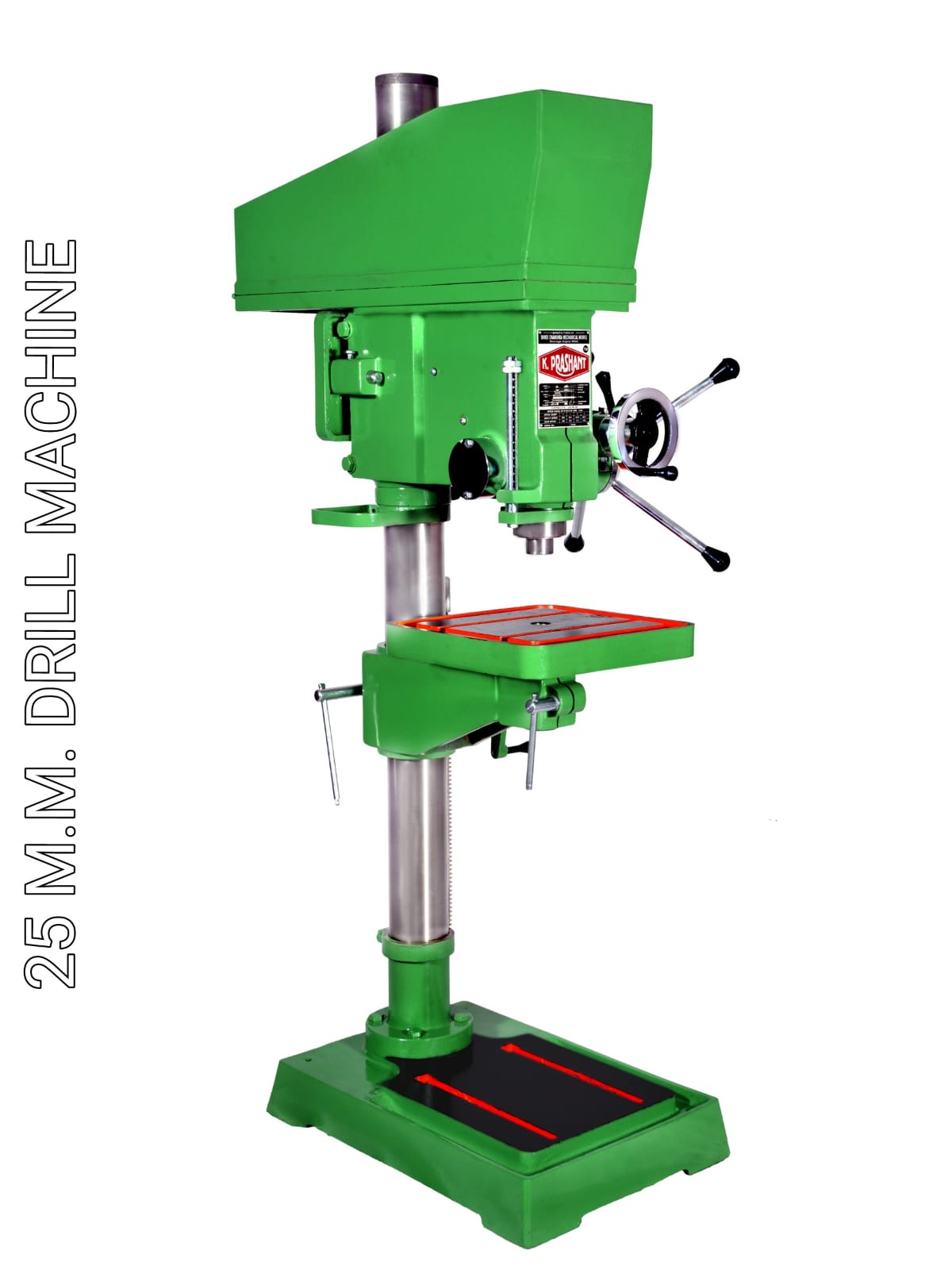

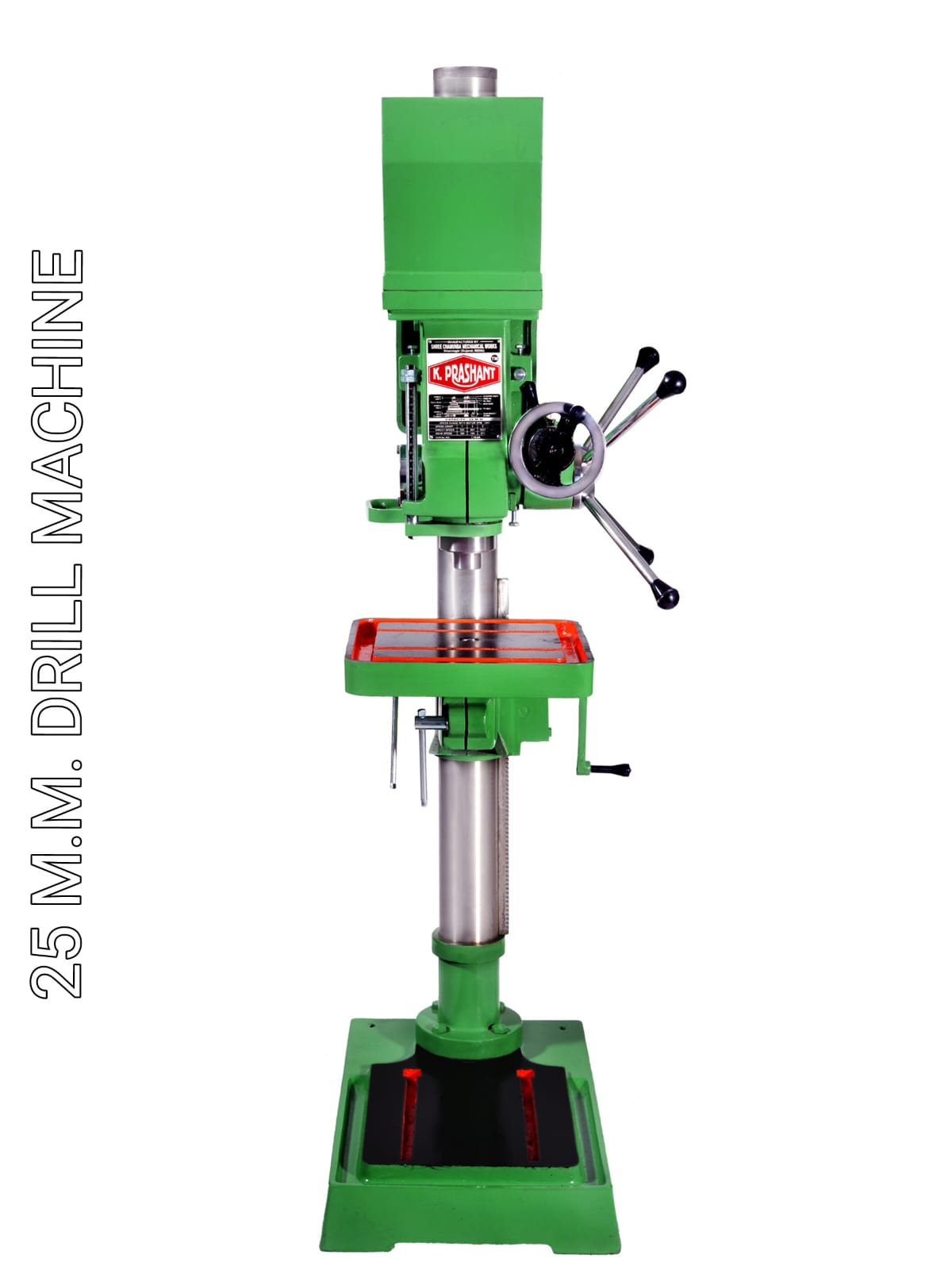

25mm Pillar Drill Machine
Shree Chamunda Mechanical Works manufacture and supply 25mm pillar drill machine with following defined specification.
| 25mm Pillar Drill Machine | |
|---|---|
| Drilling Capacity | 25 mm |
| Spindle Centre to Column | 228 mm (9") |
| Spindle Travel | 152 mm (6") |
| Size of Table (Square) | 305 mm x 305 mm (12") |
| Size of Table (Round) | 336 mm (14") |
| Overall Dimensions (L x W x H) | 750 x 400 x 1500 mm |
| Max Distance Spindle to Base | 1000 mm (40") |
| Column Diameter | 90 mm (3 9/16") |
| Machine Base | 575 mm x 400 mm (23" x 16") |
| Spindle Nose Bore | MT=3 |
| Speed Range | 105 to 2651 RPM (8 Speeds) |
| Motor Speed | 1440 RPM |
| Motor | 1 HP |
| V-Belt | B-48 |
| Weight of Machine | 190 kg (Approx) |
| Accessories with machine | Motor Pully, Motor Plate |
| Extra Accessories | Electric Motor, Drill Chuck, Arbour, Switch, V-belt |
