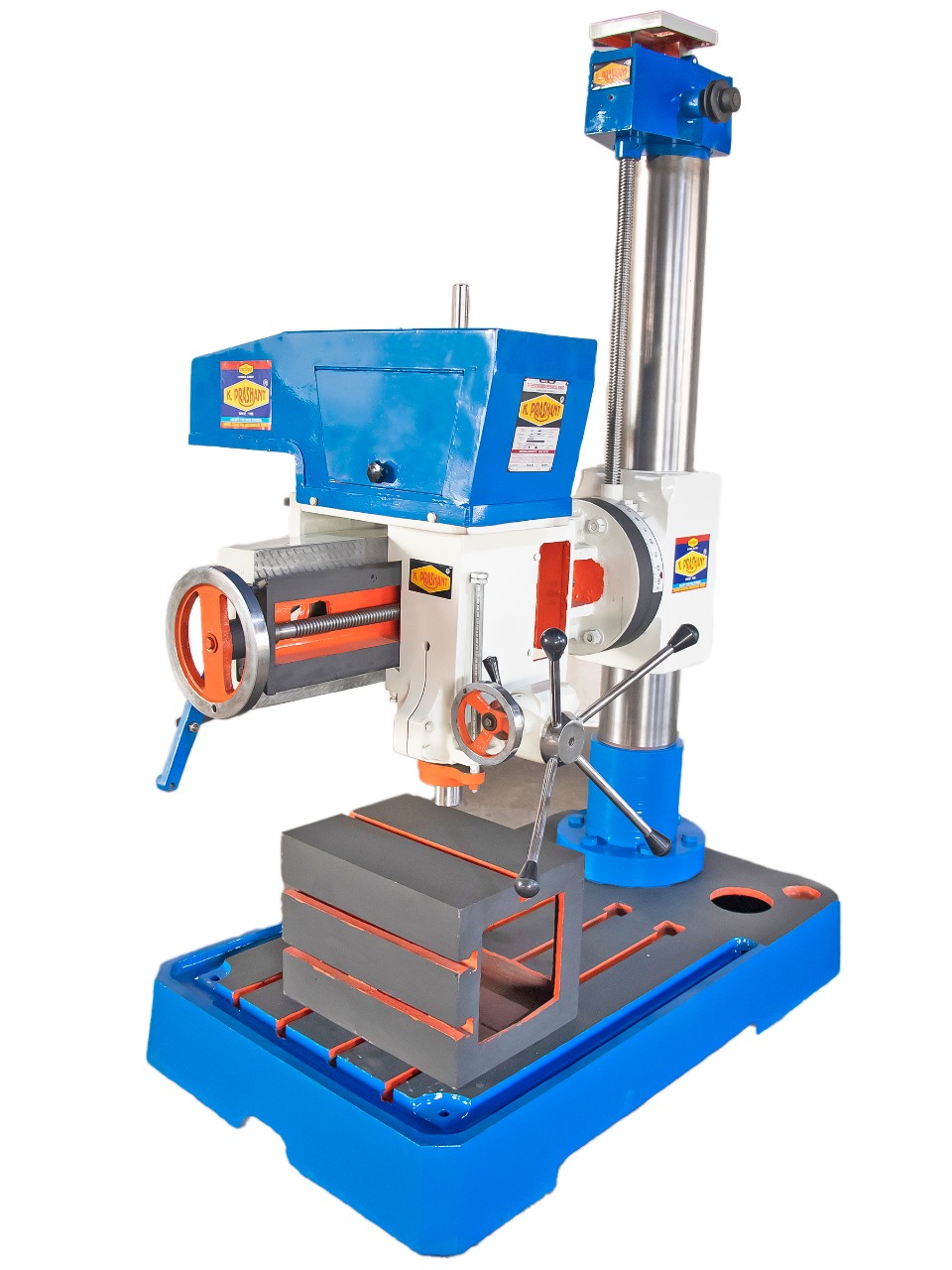

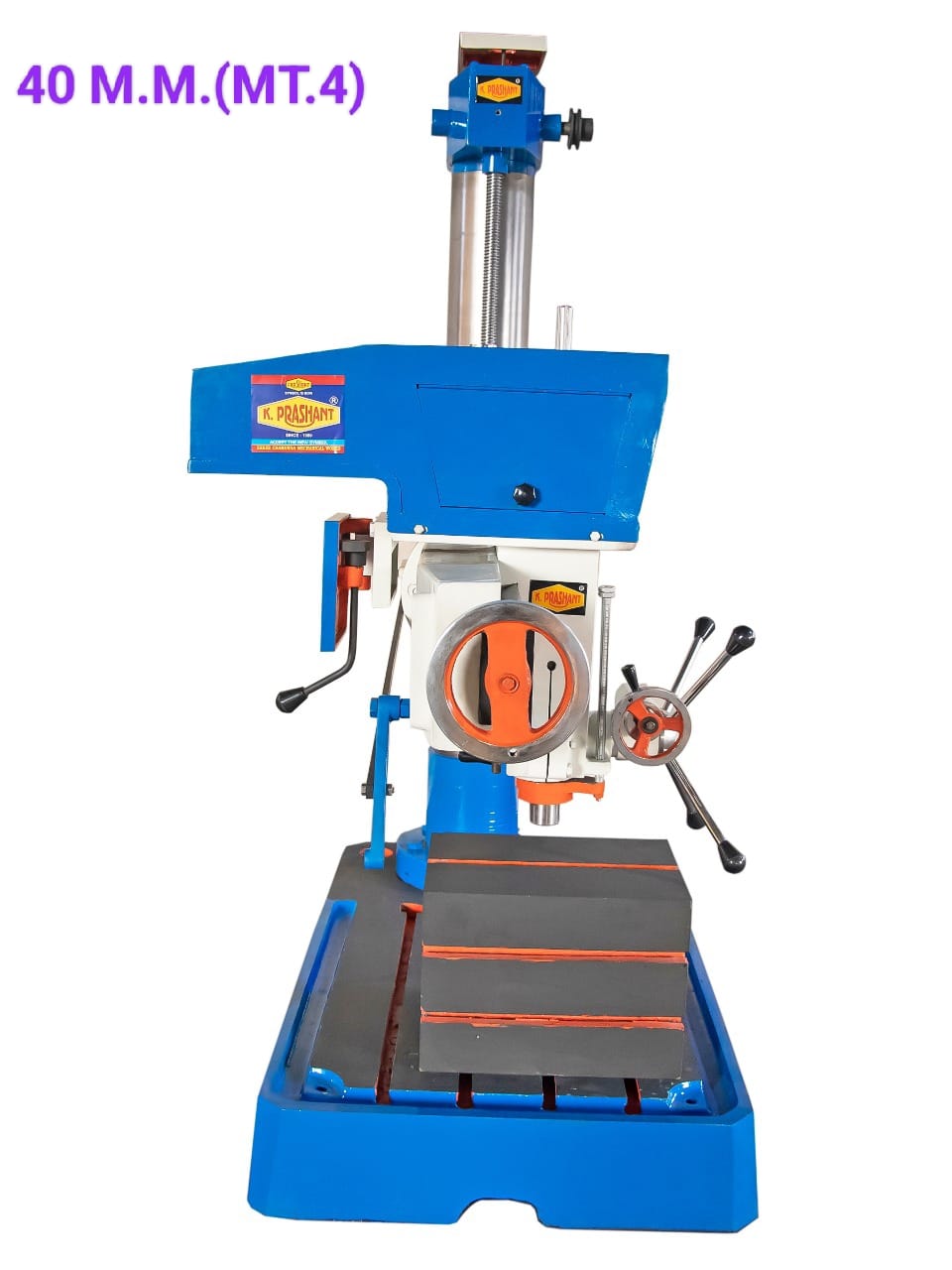

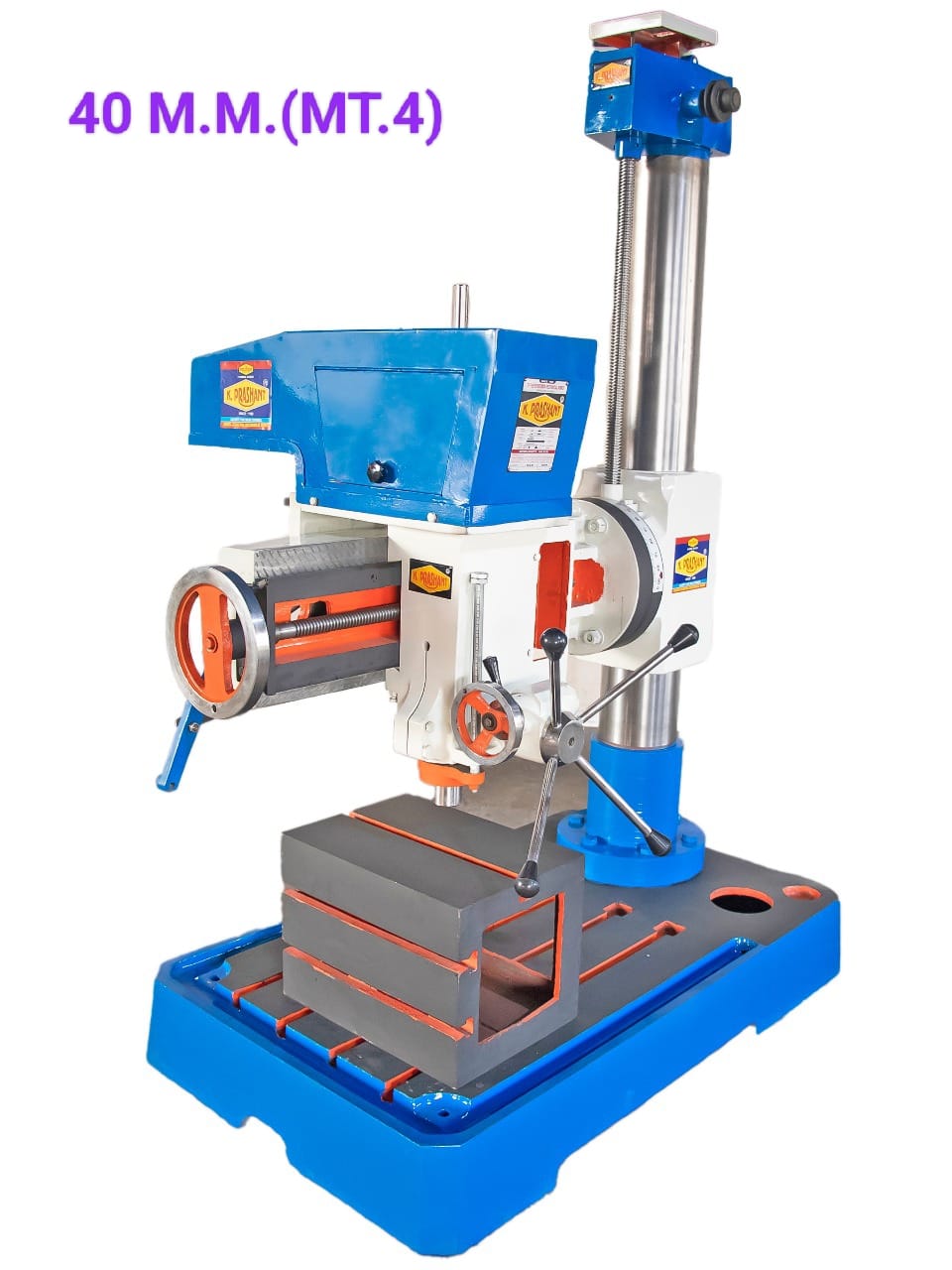

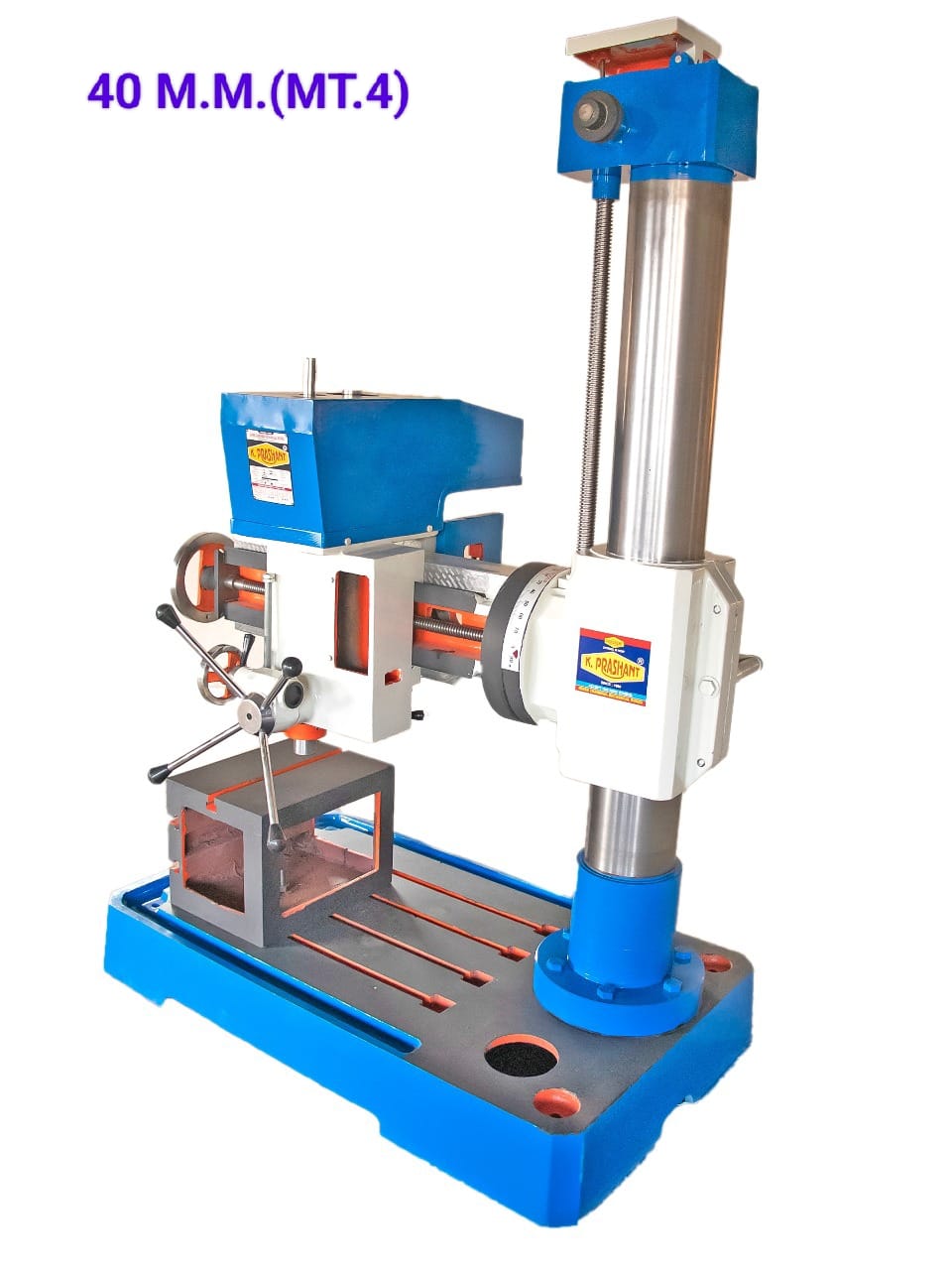

40mm Radial Drill Machine
Shree Chamunda Mechanical Works manufacture and supply 40mm Radial drill machine with following defined specification.
| 40MM RADIAL DRILL MACHINE | ||
|---|---|---|
| CAPACITY | 40 mm | |
| Drilling (M.S.) | 40 mm | |
| Drilling (C.I.) | 45 mm | |
| Boring | 80 mm | |
| Tapping (M.C.) | 20 mm | |
| Tapping (C.I.) | 32 mm | |
| DRILLING HEAD | ||
| Spindle Nose | MT-4 | |
| Spindle Nose Outside Diameter | 50 mm | |
| Ram Diameter | 75 mm | |
| Spindle Travelling | 250 mm | |
| Number of Spindle Speed | 8-Speed Pulley | |
| Speed Min / Max | 50 - 1750 | |
| Number of Power Feeds | Manual | |
| Range of Power Feeds | --- | |
| POWER | ||
| Drilling Head Motor | 1.5 / 2 H.P, 1440 RPM | |
| Elevating Motor for Arm | 0.5 H.P, 1440 RPM | |
| WORKING RANGE | ||
| Column Diameter | 170 mm | |
| Dist. from Spindle to Base Min / Max | 950 * 160 mm | |
| Dist. from Column Face to Spindle Center | 975 * 360 mm | |
| Drilling Head Travers | 615 mm | |
| Drilling Radius | 1025 mm | |
| Traverse of Arm | 875 mm | |
| BASE PLATE | ||
| Height of Base Plate | 160 mm | |
| Working Surface | 625 * 750 mm | |
| No. of "T" Slot | 4 | |
| Width of Cast Side | 18 mm | |
| V-Belt | Pulley = B/48, Lifting Pulley = A/23 | |
| Overall Dimensions (L*W*H) | 1400 * 900 * 1800 mm | |
| Box Table Size | 300 * 300 * 400 mm | |
| WEIGHT OF MACHINE | ||
| Weight | 825 KG (Approx) | |
| ACCESSORIES | ||
| With Machine | Motor Pulley, Motor Plate | |
| Extra Accessories | Motor, Arbour, Switch, V-Belt | |
