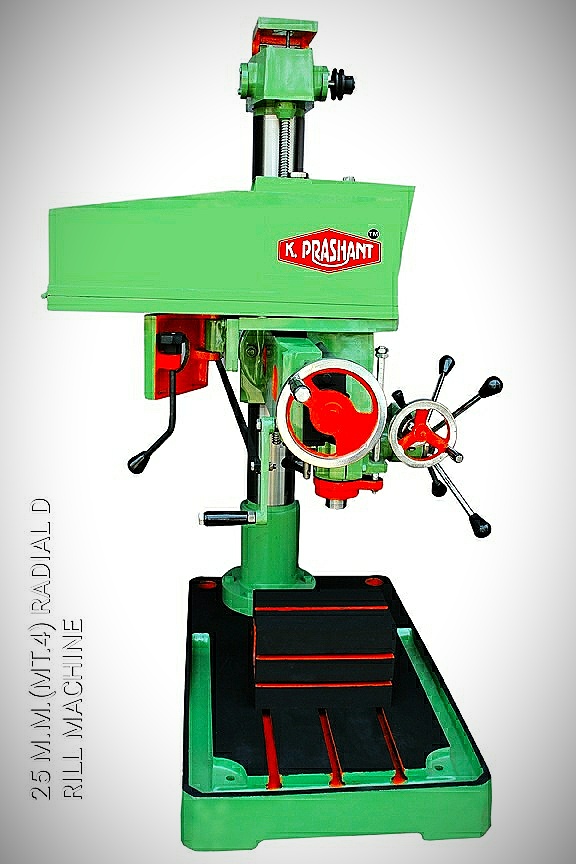

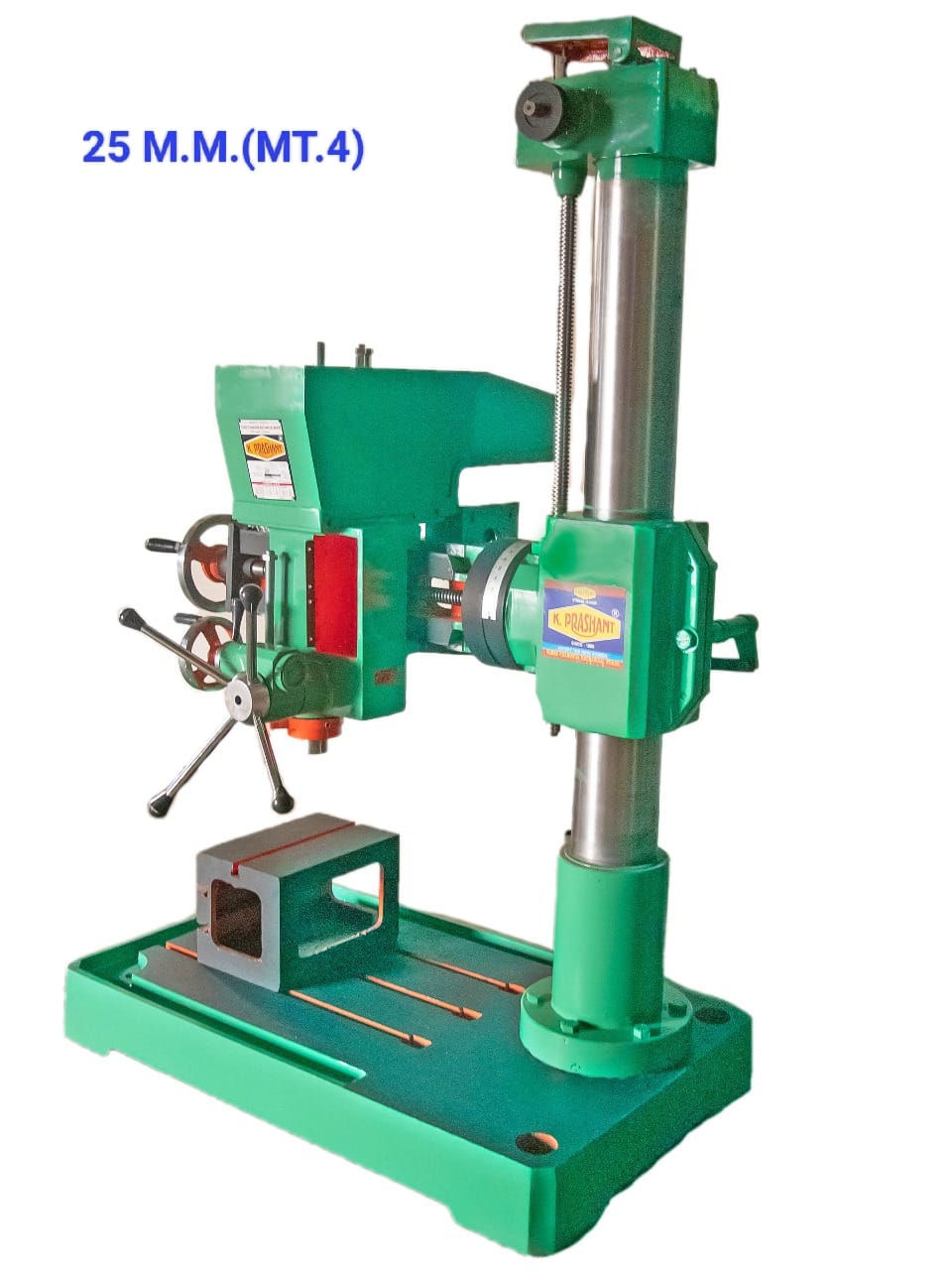

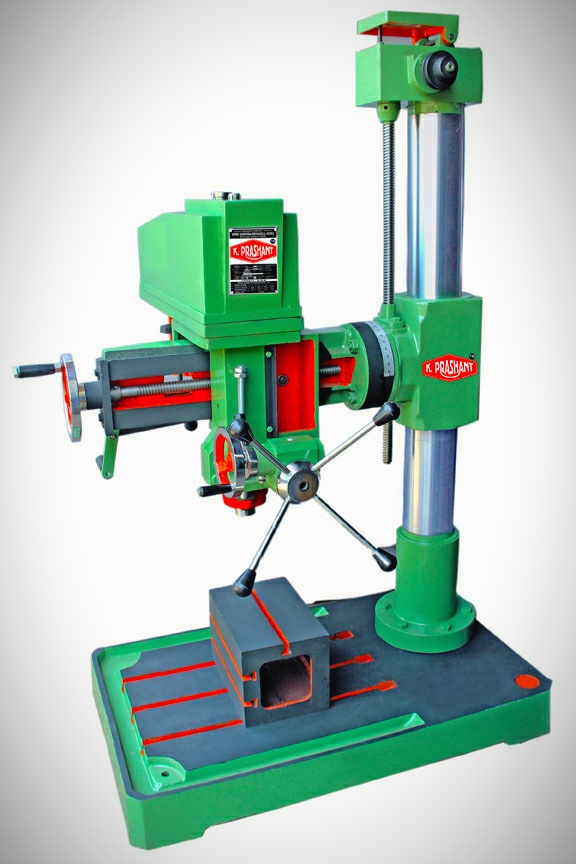

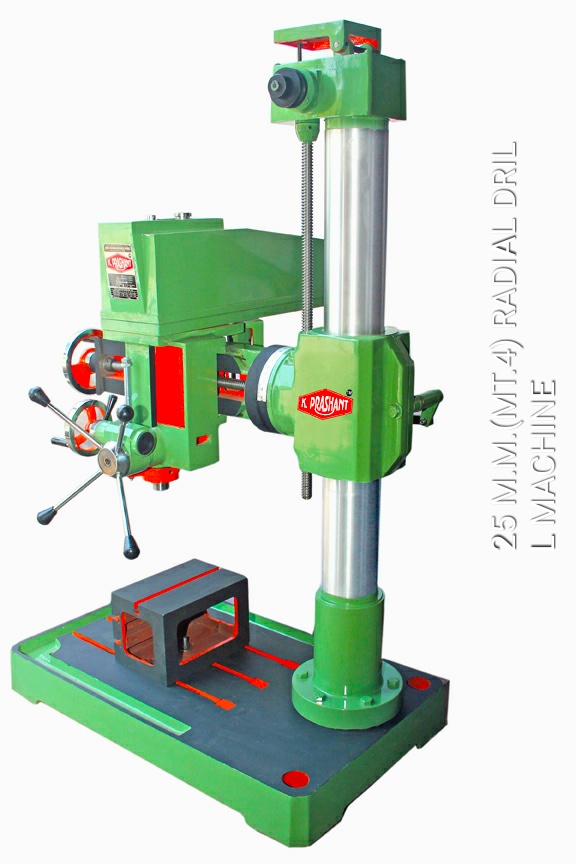

25mm Radial Drill Machine
Shree Chamunda Mechanical Works manufacture and supply 25mm Radial drill machine with following defined specification.
| 25MM RADIAL DRILL MACHINE | ||
|---|---|---|
| CAPACITY | 25 mm | |
| Drilling (M.S.) | 25 mm | |
| Drilling (C.I.) | 32 mm | |
| Boring | 80 mm | |
| Tapping (M.C.) | 16 mm | |
| Tapping (C.I.) | 25 mm | |
| DRILLING HEAD | ||
| Spindle Nose | MT-4 | |
| Spindle Nose Outside Diameter | 44 mm | |
| Ram Diameter | 75 mm | |
| Spindle Travelling | 225 mm | |
| Number of Spindle Speed | 8-Step Pulley | |
| Speed Min / Max | 50 - 1750 | |
| Number of Power Feeds | 2 | |
| Range of Power Feeds | 0.10 - 20 | |
| POWER | ||
| Drilling Head Motor | 1 H.P, 1440 RPM | |
| Elevating Motor for Arm | 0.5 H.P, 1440 RPM | |
| WORKING RANGE | ||
| Column Diameter | 130 mm | |
| Dist. from Spindle to Base Min / Max | 850 mm * 160 mm | |
| Dist. from Column Face to Spindle Center | 850 mm * 360 mm | |
| Drilling Head Travers | 380 mm | |
| Drilling Radius | 875 mm | |
| Traverse of Arm | 550 mm | |
| BASE PLATE | ||
| Height of Base Plate | 130 mm | |
| Working Surface | 600 * 810 | |
| No. of "T" Slot | 3 | |
| Width of Cast Side | 16 mm | |
| V-Belt | Pulley = B/42, Lifting Pulley = A/22 | |
| Overall Dimensions (L*W*H) | 1100 * 800 * 1600 mm | |
| Box Table Size | 200 * 200 * 300 mm | |
| WEIGHT OF MACHINE | ||
| Weight | 430 KG (Approx) | |
| ACCESSORIES | ||
| With Machine | Motor Pulley, Motor Plate | |
| Extra Accessories | Motor, Arbour, Switch, V-Belt | |
